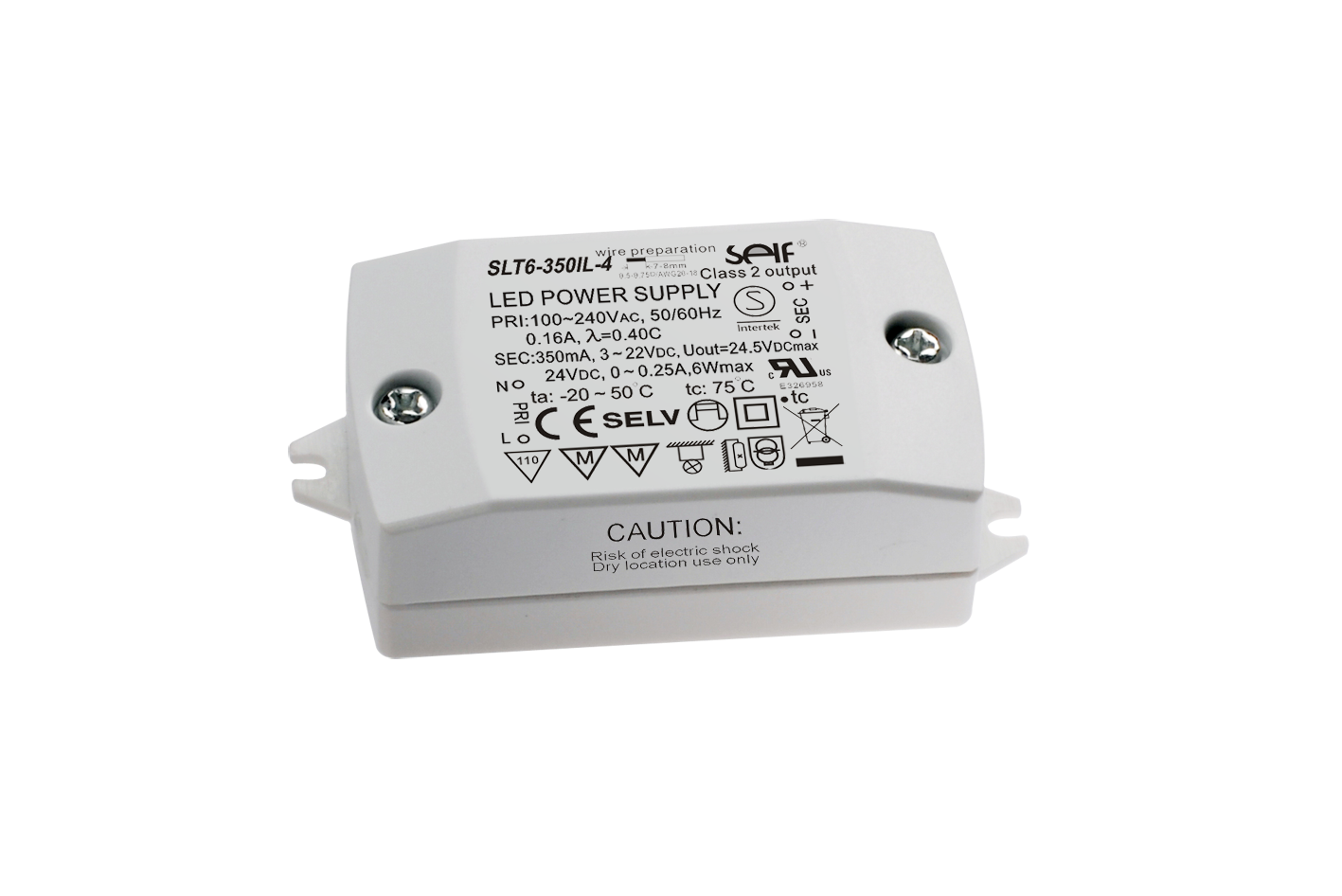

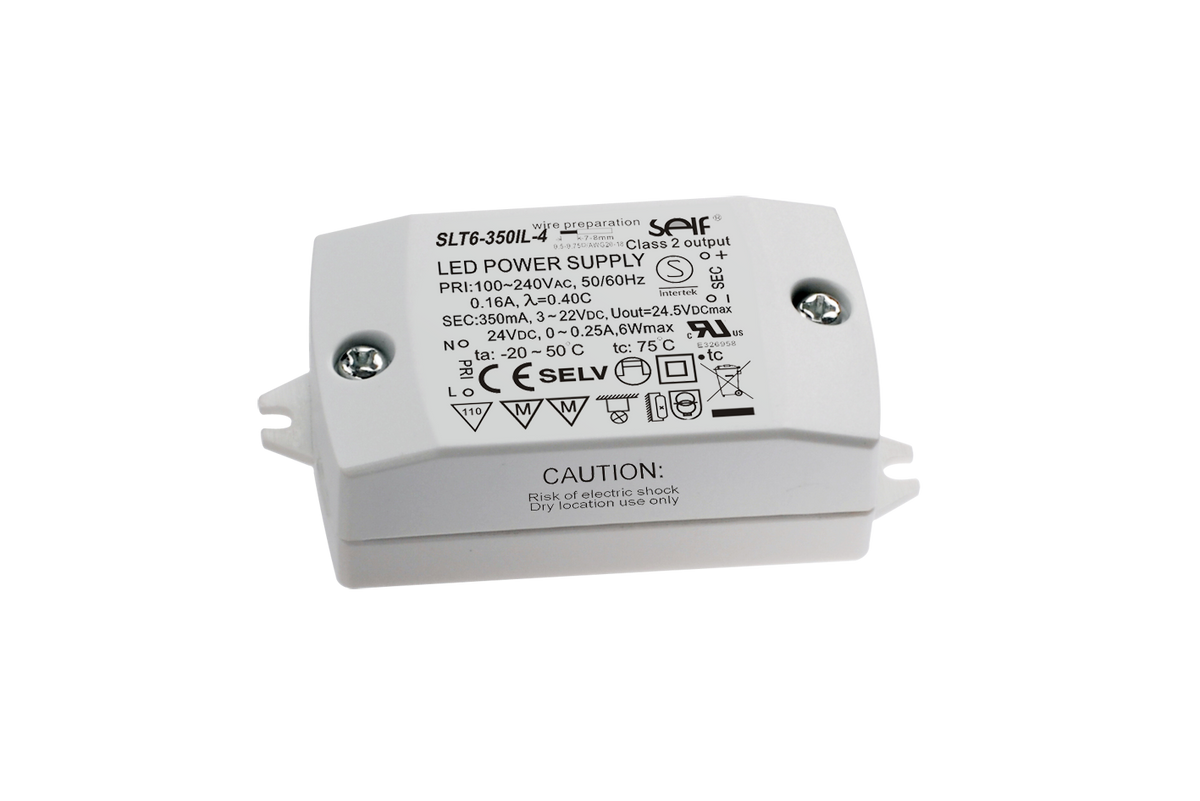

SELF Constant Current LED Driver
This series was designed for value and meets SELV standard of preventing electric shock. Open circuit, short circuit, over load and over temperature protection increases safety. Low standby power consumption complies with ERP directives while optimised electric circuit design makes it a very cost-effective option.
- Universal input voltage (100 ~ 240Vac)
- Compact design
- Designed for independent use
- Constant current and constant voltage design (350mA and 700mA model)
- SELV output (<60V)
- Class 2 output
- Low output ripple current ≤±15%
- Fast start-up time ≤0.5s
- No load power consumption ≤0.3W
- Open circuit, short circuit, over load and over temperature protection
- Auto restart after fault conditions removed
- High efficiency 79% (AC230V, full load)
- ECO design, complies with ERP directives
- IP20
